Taula elevadora de molla QSL1000 i carregador ràpid de coixins d'aire QAL1000

Qty2~1021~5051~100
QSL1000USD550USD520USD500
QAL1000USD850USD800USD765

Característiques de la taula de treball giratòria:

  • Mantenir automàticament una càrrega a l'alçada ideal per a la càrrega i descàrrega manual
  • No requereix energia elèctrica
  • El disseny estable no requereix cap retard.
  • La base petita permet que les obres estiguin a prop dels elevadors de tisora industrials en qualsevol posició.
  • Fàcil traslladar a qualsevol ubicació amb un model de taula opcional sense carretons elevadors.

Compare with general lift tables, this QSL1000 series Spring Level Loader  and QAL1000 airbag pallet positioner  is a rotating lift table which can automatically maintain a load at the ideal height for manual loading and unloading without any electric or any manual operation, this lift table with rotate plate can automatically maintain at the top of the load as the working height to  reduce the discomfort of long-term bending just with the spring force of the spring/airbag and the gravity of the cargo.

It is also a rotating platforma it can realize the operation of each side by rotating the surface of the spring lifters, so the workers can easily complete all loading and unloading works just keep the same posture. Not only improves productivity but also protects workers from long time bending.

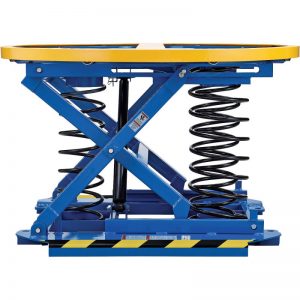

As weight is added to the Spring Actuated Level Loader , it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the lift and rotate table . Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.

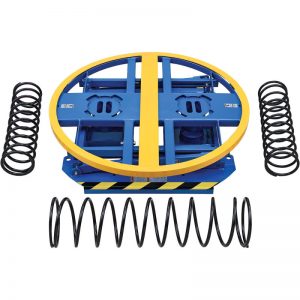

Requiring no power, the Lift Table with spring comes with three springs for maximum load weight leveling. Easily remove one or two springs for lighter load requirements.

Inclou 3 molles de diferent mida, pots agrupar-les lliurement segons la capacitat i l'alçada que necessitis. Equipat amb carretó elevador "butxaca" permet el transport entre diferents zones de treball. El "movedor de taula elevadora" també és opcional per a les zones on no hi ha carretó elevador.

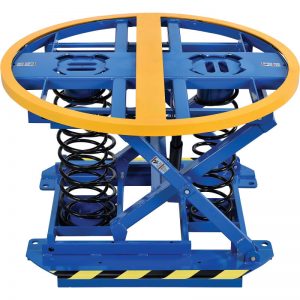

Load weight range is 440 lbs. to 4,400 lbs. The Spring Pallet Positioner allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of theTurntable platform.



Inclou 3 molles de diferents mides, les podeu agrupar lliurement segons la capacitat i l'alçada que necessiteu. Equipada amb carretó elevador “butxaca” permet el transport entre diferents àrees de treball. El tipus de sobretaula està també opcional per a les zones a les quals no es troba el carretó elevador.







The frame of the Spring Activated Lift Table can handle loads of up to 4400 lbs. In order to adapt the unit for different pallet loads, the springs are changed. The springs are chosen to match the weight and height of a fully loaded pallet. A unit may have one to three springs. Each time the pallet weight or pallet height is changed, the springs may also need to be  changed. Instructions will show you how the springs are selected. Each spring is color-coded with paint mark at one end.

Lift platform unit will always have at least one spring. Lift table with rotary plate has an orange mark, and is larger in diameter than the others. This large spring is always placed near the rear of the unit.

Detalls de QAL1000:

It has an air charging port and pressure regulating knob, so you can adjust the height by adjust the air pressure. This can make up for the problem of oil leakage from ordinary Stationary Lift table

Quina diferència hi ha entre el Carregador de coixins d'aire o taula elevadora de tisores amb molla?

  • Estabilitat: compared with the Spring Pallet lever loader , the Airbag Level Loader is more stable, not easy to bump, and the shock absorption performance is better.
  • Diferents mètodes d'ajust d'engranatges: the Spring Pallet scissor Lift table  has 3 springs, which can only be combined into different three loads by different combinations of three springs; The Airbag Pallet handing lift table can be adjusted arbitrarily by changing the air pressure.
  • Interval de càrrega is different: the minimum load of spring Industrial Scissor Liftsis 440KG, the minimum load of air Skid Carousel Positioner can be less than 100KG, or even smaller.
  • Diferents mètodes d'ajust: it is convenient to adjust the load of the airbag Pallet leveller. It only needs to deflate and inflate, and it can be completed under the condition of heavy objects on the table, without removing the table. But the spring Pallet Positioner  needs to be removed from the table to replace the spring collocation to adjust the load.
  • La plataforma de coixí d'aire ha d'estar equipada bomba d'aire.
    i-Ascensor núm.13136011313604
    ModelQSL1000QAL1000
    Capacitatkg (lb.)200-2000(440-4400)100-2000(220-4400)
    Alçada comprimidamm (in.)240(9.4)265(10.4)
    Alçada ampliadamm (in.)710(28)710(28)
    Anell giratori, fora de dia.mm (in.)1110(44)1110(44)
    Anell giratori, dins del dia.mm (in.)1035(40.7)1035(40.7)
    Longitud del marc de la basemm (in.)1150(45.3)1150(45.3)
    Amplada del marc de la basemm (in.)930(36.6)930(36.6)
    OpcióMover de taula elevadora
